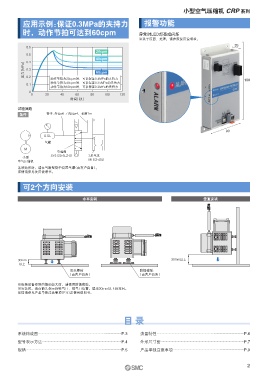

小型空气压缩机 CRP 系列
应用示例：保证0.3MPa的夹持力 报警功能
时，动作节拍可达到60cpm 异常时LED灯亮或闪烁
※关于原因、处理，请参照使用说明书。
35
0.6
20cpm
0.5
40cpm
压力［MPa］ 0.3 60cpm
0.4
0.2
动作节拍为20cpm时，可以保证0.4MPa的夹持力
动作节拍为40cpm时，可以保证0.35MPa的夹持力 180
0.1
动作节拍为60cpm时，可以保证0.3MPa的夹持力
0
0 20 40 60 80 100 120
时间［秒］
试验回路
条件 管子:外径ø6 ／内径ø4；长度1m
90
0.5L
气罐
M
电磁阀
SY5120-5LZ-01 3爪气爪
小型
空气压缩机 MHS3-40D
连续动作时，请在气路配管中设置气罐（由客户自备）。
详情请参见使用说明书。
可2个方向安装
水平安装 垂直安装
30mm 30mm以上
以上
双头螺栓 防振橡胶
（由客户自备） （由客户自备）
※组装设备受到的振动较大时，请使用防振橡胶。
※安装时，请在箭头指示的吸气口、排气口位置，留出30mm以上的空间。
详情请参见产品单独注意事项（P.9）及使用说明书。
