VBA Series
Related Products

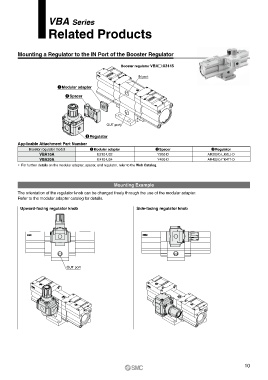

Mounting a Regulator to the IN Port of the Booster Regulator
Booster regulator VBA-X3145
IN port
qModular adapter
wSpacer
OUT port
eRegulator
Applicable Attachment Part Number
Booster regulator model qModular adapter wSpacer eRegulator
VBA10A E210-U02 Y200-D AR20(K)-m02m-D
VBA20A E410-U04 Y400-D AR40(K)-m04m-D
* For further details on the modular adapter, spacer, and regulator, refer to the Web Catalog.
Mounting Example
The orientation of the regulator knob can be changed freely through the use of the modular adapter.
Refer to the modular adapter catalog for details.
Upward-facing regulator knob Side-facing regulator knob
OUT port
