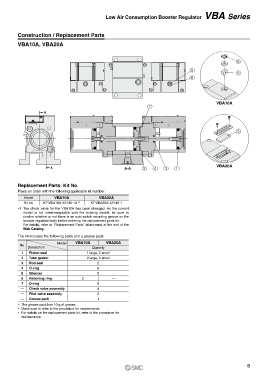

Low Air Consumption Booster Regulator VBA Series

Construction / Replacement Parts
VBA10A, VBA20A

y

t
t
y

VBA10A
u
A

t

VBA20A
A A-A w r e q

Replacement Parts: Kit No.
Place an order with the following applicable kit number.
Model VBA10A VBA20A
Kit no. KT-VBA10A-X3145-1A ∗1 KT-VBA20A-X3145-1
∗1 The check valve for the VBA10A has been changed. As the current
model is not interchangeable with the existing model, be sure to
confirm whether or not there is an auto switch mounting groove on the
booster regulator body before ordering the replacement parts kit.
For details, refer to “Replacement Parts” attachment at the end of the
Web Catalog.
The kit includes the following parts and a grease pack.
Model VBA10A VBA20A
No.
Description Quantity
1 Piston seal 1 large, 2 small
2 Tube gasket 2 large, 2 small
3 Rod seal 2
4 O-ring 6
5 Silencer 2
6 Retaining ring 2 —
7 O-ring 5
— Check valve assembly 4
— Pilot valve assembly 2
— Grease pack 1
∗ The grease pack has 10 g of grease.
∗ Make sure to refer to the procedure for maintenance.
∗ For details on the replacement parts kit, refer to the procedure for
maintenance.
